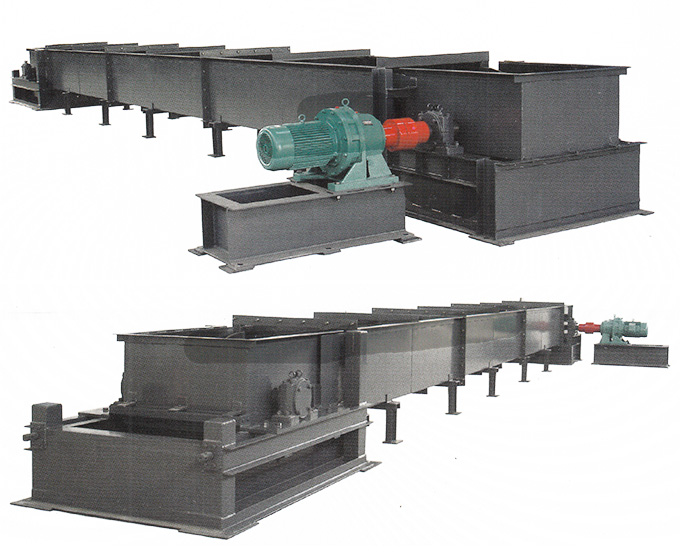

XGZ Series scraper conveyor

XGZSeries scraper conveyors are mainly suitable for coal, metallurgy, electric power chemical industry, mining and other industries, transporting a variety of different moisture, particle size below 300m, and can also transport particles with a certain temperature。

1.This series can be divided into steel structure tank and brick structure tank according to the structure of the tank.
2.The scraper machine is mainly composed of: drive device, machine head, machine tail, scraper chain, and middle groove。
3.This machine mainly conveys horizontally and can also be tilted. Its maximum conveying inclination angle is 20 °。
4.Horizontal transportation can be divided into single and double-layer transportation。
5.According to the layout needs, this machine can be equipped with multiple inlet and outlet ports。
