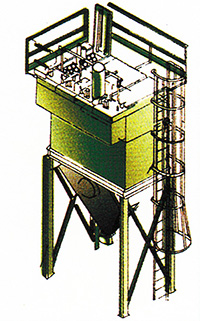

XPC Type gas box pulse bag dust collector

brief introduction:

The air box type pulse bag dust collector, which integrates various types of bag dust collectors such as chamber backblowing and injection pulse ash cleaning, overcomes the shortcomings of insufficient chamber backblowing ash cleaning strength and simultaneous injection pulse ash cleaning and filtration, thus expanding the application range of bag dust collectors. Due to the structure of this type of dust collector has its own characteristics, it improves the dust collection efficiency and prolongs the service life of the filter bag. This series of products can be widely used in crushing, packaging, crying top clinker coolers and various mills in cement plants. It is also suitable for gas dust collection with ultra-high dust concentration。

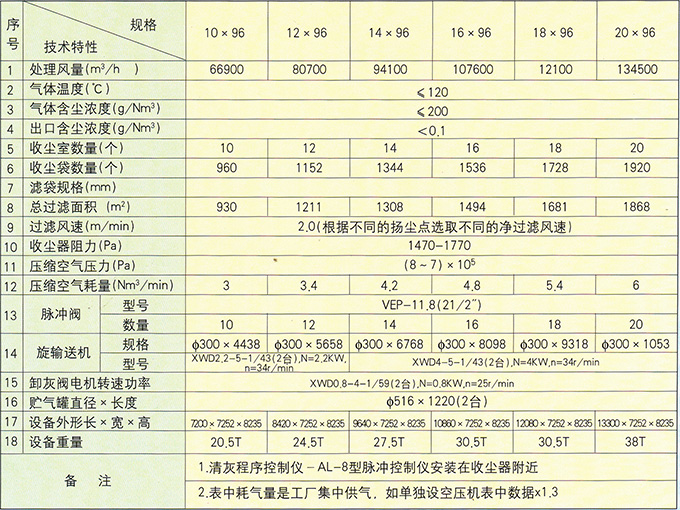

Technical specifications and selection parameters:

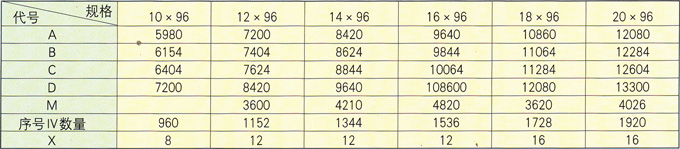

external dimensions:

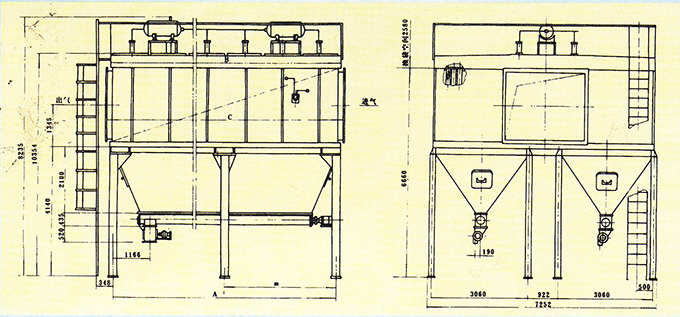

outline:

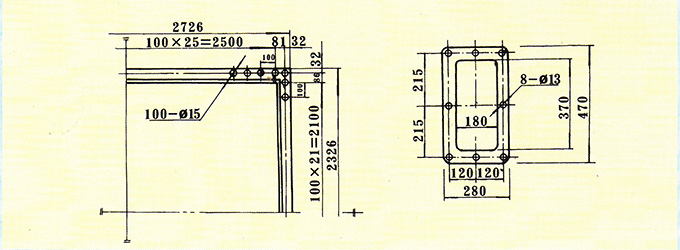

Import and export flanges and ash outlets:

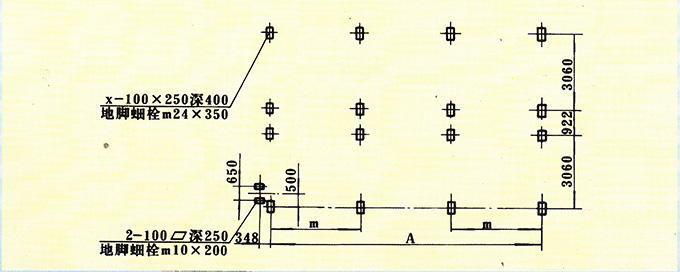

base diagram:
