SKT Series Under Screen Air Chamber Jigging

current location：home>product Center

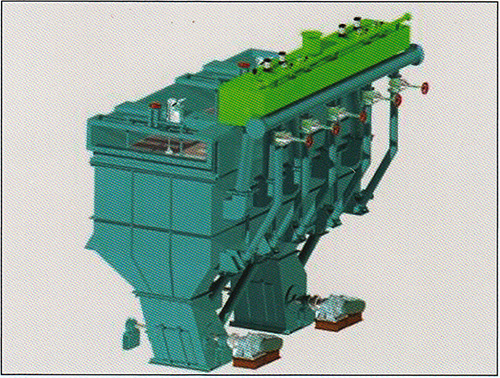

SKT Series Under Screen Air Chamber Jig

usage：

SKT series jig can be used to sort lump coal, ungraded coal and ungraded raw coal. It can also be used to sort the medium coal of the main washing machine.

Technical characteristics：

1. Using U-shaped vibration under the screen air chamber, the bed is running smoothly. Sliding or no back pressure cover numerical control air valve, open labor-saving, low noise, strong reliability.

2. The computer numerical control device is easy to operate, the maintenance amount is small, and the jigging system can be adjusted arbitrarily. The automatic discharge system is continuous and stable.

3. Install a movable overflow dike that automatically adjusts the thickness of the bed. The discharge wheel is located at the lower part of the body, and the wheel length is small to prevent gangue and coal leakage.

4. The top water is evenly supplied along the full width of the machine, and the water surface fluctuates smoothly. The body adopts a combined assembly structure, which is easy to transport and install. Multi-chamber shared air valve, high-pressure air centralized purification refueling device.

Selection instructions：

1. SKT series jig is divided into left and right installation forms. If users have special requirements for the installation size of SKT jig, please make it clear.

2. When users choose, request detailed information from the manufacturer as required.

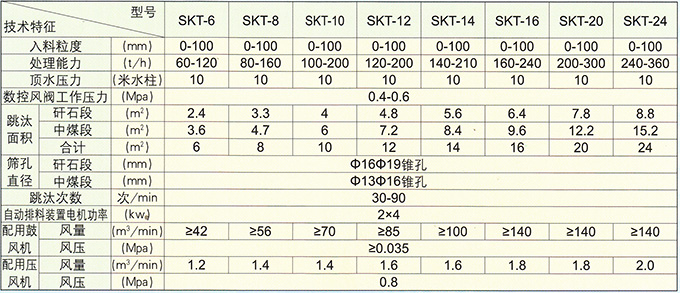

Main technical parameters：

When ordering, the assembly form must be indicated: along the direction of coal flow, the air valve on the left is installed on the left, and the air valve on the right is installed on the right.
