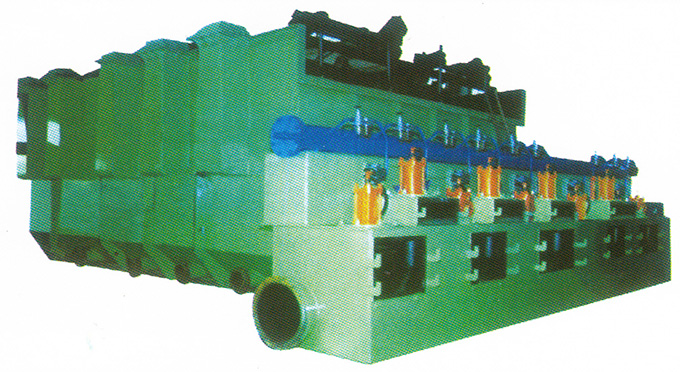

XD Series Under Screen Air Chamber Jigging
current location：home>product Center
XDSeries Under Screen Air Chamber Jig
purpose：
Suitable for coal washing plant sorting。
Main structural characteristics：
1.The combined body structure is adopted to facilitate equipment transportation and installation.
2.Adopt automatic hydraulic discharge device, no material stuck phenomenon, stable and reliable operation.
3.No back pressure cover valve.
4.High pressure wind centralized purification refueling.
5.Four-link anti-blocking buoy device.
6.Intelligent control of jig parameters.
2.Adopt automatic hydraulic discharge device, no material stuck phenomenon, stable and reliable operation.
3.No back pressure cover valve.
4.High pressure wind centralized purification refueling.
5.Four-link anti-blocking buoy device.
6.Intelligent control of jig parameters.
Selection Instructions：
1.XD series jig is divided into left and right installation forms. If the user has special requirements for the installation size of the jig, please make it clear.
2.When users choose, request information from the manufacturer as required.
2.When users choose, request information from the manufacturer as required.

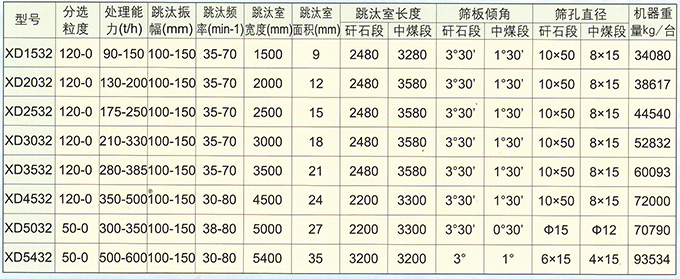

technical parameters：

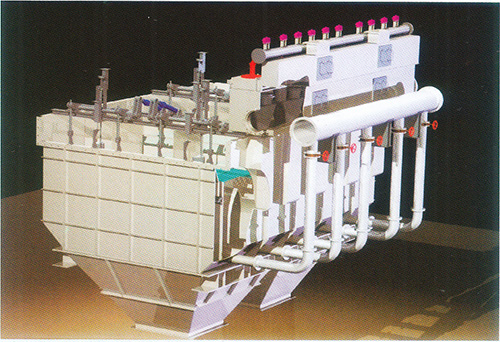

A newly developed high-efficiency jig

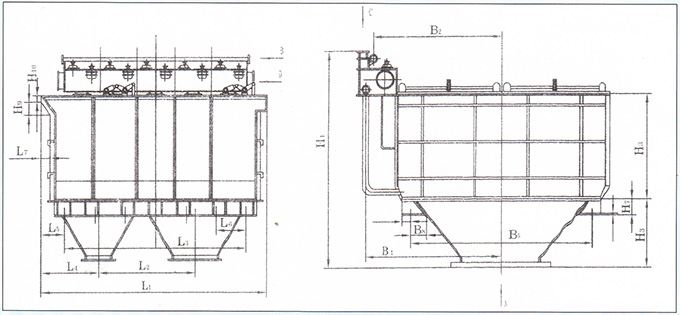

Outline drawing of XD air chamber jig under screen

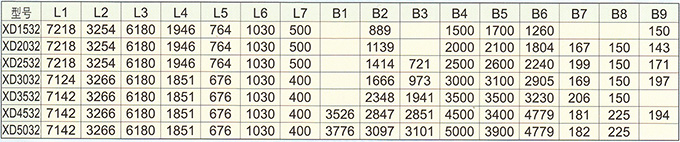

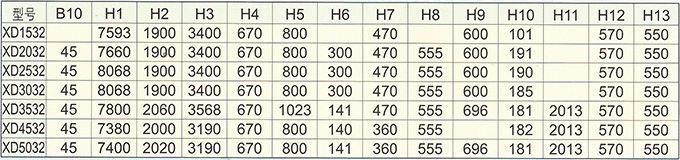

Installation dimension table：
